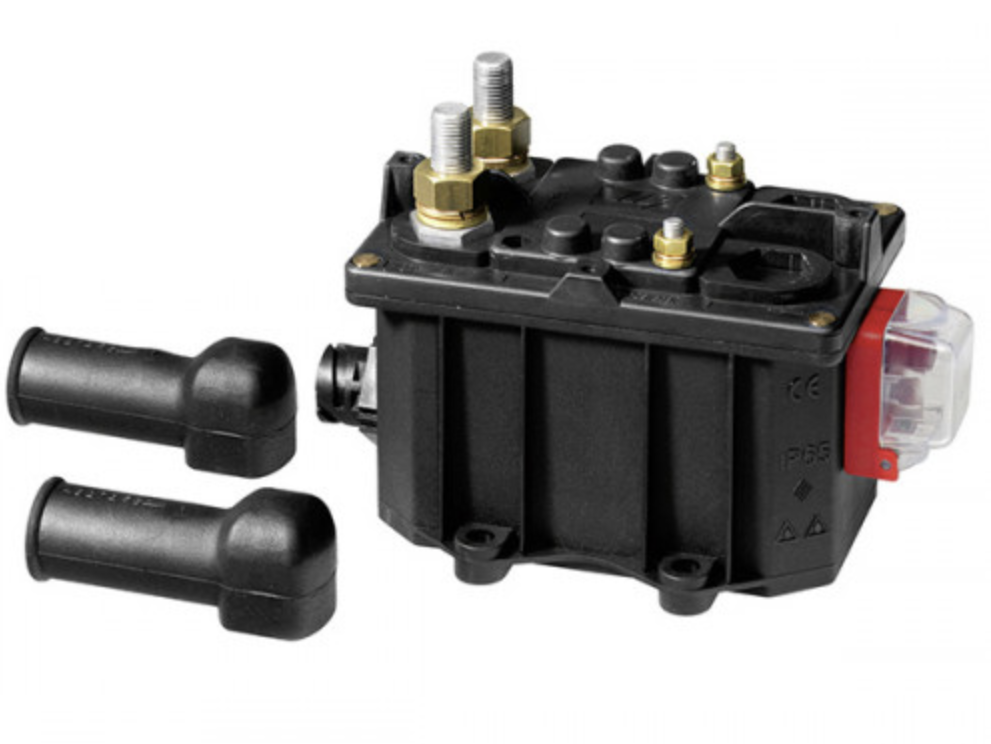

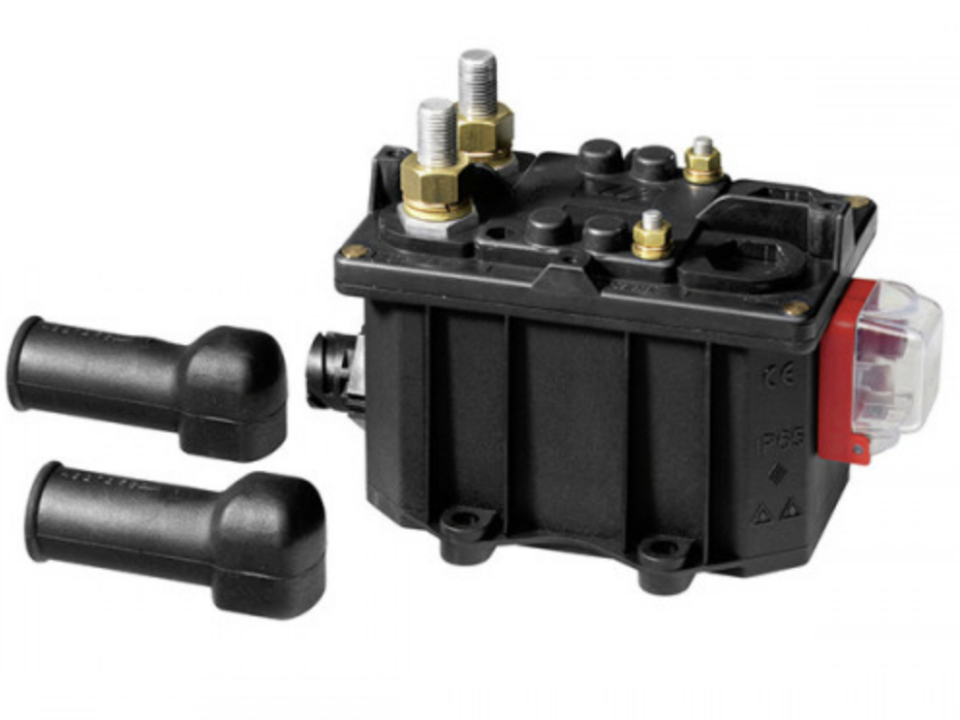

Menbers Uzaktan Kontrollü Elektrikli Devre Kesici Şalter 24 Volt 350 Amper 08097262 Max. 2500A(3 san.) IP65

MENBERS 08097262 UZAKTAN KONTROLLÜ AKÜ KESİCİ ŞALTER 24 VOLT 350 AMPER EMERGENCY BUTONLU

• Intermittent Current:  2500A at 3 sec

• Operating Temp: -40 °C to +85 °C

• Ingress Protection: IP65

• Contacts: Tin-plated Brass

• Terminals:M10 - M12 (brass)

Ürün Data Sheet İçin Tıklayınız.

DEVRE KESICI 24V;
SUREKLI 350A, MAX 2500A / 3 SANİYEDE, ACIL DURUMLAR ICIN ON-OFF BUTONLU

Electrical bistable remote control electrical battery disconnect switches in this series with “mechanical ON-OFF position” absorb current only during the commuting phase or when switched from (OFF) to (ON) and vice versa. Generally referred to as “bistable with zero consumption”, their switches turn to closed or open state of the electric circuit.

In shape and design the current isolating switches with mechanical ON-OFF position are very similar to the models described in the preceding section. But there is one difference: while traditional current isolating switches require a minimum current when they are turned on, models with “mechanical ON-OFF position” absorb current only during the commuting phase or when switched from (OFF) to (ON) and vice versa. Generally referred to as “bistable with zero consumption”, their switches turn to closed or open state of the electric circuit.
